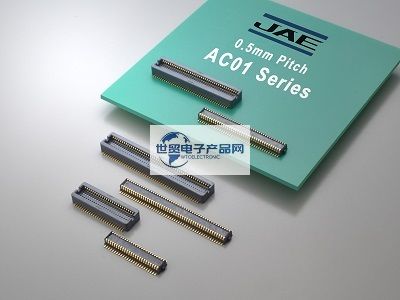

JAE|JAE連接器|日本航空電子AC01系列0.5毫米間距堆疊型板對板連接器是一款：0.5毫米間距的水平板對板連接器，適用于信息和通信設備以及各種其他工業設備。連接器系列有2.5毫米和3.0毫米堆疊高度可供選擇，并采用了經過數十年使用證明的高度穩定和可靠的接觸結構。其主要特點是:觸點間距:0.5毫米；堆疊高度:2.5毫米和3.0毫米(3.0毫米堆垛高度適用于50個位置。和100個位置。僅),高度穩定和可靠的接觸結構，經過幾十年的使用證明。壓紋膠帶包裝便于SMT生產。主要應用為：信息和通信設備、工廠自動化設備、醫療設備(超聲波診斷設備)以及其他各種電氣設備。
1、JAE|JAE連接器|日本航空電子AC01系列0.5毫米間距堆疊型板對板連接器主要產品規格詳情：
| Number of Contacts | 50, 60, 80, 100 pos. |
| Pitch | 0.5 mm, Double row |
| Rated Current | AC, DC each 0.3A/contact |
| Contact Resistance | 40 milliohm max. |
| Insulation Resistance | 100 megohm min. |
| Dielectric Withstanding Voltage | AC 500 Vr.m.s. (per minute) |
| Stacking Heights | 60 and 80 pos.: 2.5 mm |
| 50 and 100 pos.: 2.5 mm, 3.0 mm | |
| Operating Temperature Range | -40 deg. C to +85 deg. C |
------------------------------------------------------------------------------------------------
2、日本JAE|JAE連接器|日本航空電子AC01系列0.5毫米間距堆疊型板對板連接器主要料號/型號：
| Product Name | Features | Number of Positions |
| AC01P050WA1R500 | 0.5 mm pitch, Horizontal Board-to-Board connector, 50 pos., Plug | 50 pos. |
| AC01P050WA1R3000 | 0.5 mm pitch, Horizontal Board-to-Board connector, 50 pos., Plug | 50 pos. |
| AC01P060WA1R3000 | 0.5 mm pitch, Horizontal Board-to-Board connector, 60 pos., Plug | 60 pos. |
| AC01P060WA1R500 | 0.5 mm pitch, Horizontal Board-to-Board connector, 60 pos., Plug | 60 pos. |
| AC01P080WA1R3000 | 0.5 mm pitch, Horizontal Board-to-Board connector, 80 pos., Plug | 80 pos. |
| AC01P080WA1R500 | 0.5 mm pitch, Horizontal Board-to-Board connector, 80 pos., Plug | 80 pos. |
| AC01P100WA1R3000 | 0.5 mm pitch, Horizontal Board-to-Board connector, 100 pos., Plug | 100 pos. |
| AC01P100WA1R500 | 0.5 mm pitch, Horizontal Board-to-Board connector, 100 pos., Plug | 100 pos. |
| AC01S050WA1R500 | 0.5 mm pitch, Horizontal Board-to-Board connector, 50 pos., Socket | 50 pos. |
| AC01S050WA1R3000 | 0.5 mm pitch, Horizontal Board-to-Board connector, 50 pos., Socket | 50 pos. |
| AC01S050WA2R500 | 0.5 mm pitch, Horizontal Board-to-Board connector, 50 pos., Socket | 50 pos. |
| AC01S050WA2R2800 | 0.5 mm pitch, Horizontal Board-to-Board connector, 50 pos., Socket | 50 pos. |
| AC01S060WA1R500 | 0.5 mm pitch, Horizontal Board-to-Board connector, 60 pos., Socket | 60 pos. |
| AC01S060WA1R3000 | 0.5 mm pitch, Horizontal Board-to-Board connector, 60 pos., Socket | 60 pos. |
| AC01S080WA1R500 | 0.5 mm pitch, Horizontal Board-to-Board connector, 80 pos., Socket | 80 pos. |
| AC01S080WA1R3000 | 0.5 mm pitch, Horizontal Board-to-Board connector, 80 pos., Socket | 80 pos. |
| AC01S100WA1R500 | 0.5 mm pitch, Horizontal Board-to-Board connector, 100 pos., Socket | 100 pos. |
| AC01S100WA1R3000 | 0.5 mm pitch, Horizontal Board-to-Board connector, 100 pos., Socket | 100 pos. |
| AC01S100WA2R500 | 0.5 mm pitch, Horizontal Board-to-Board connector, 100 pos., Socket | 100 pos. |
| AC01S100WA2R2800 | 0.5 mm pitch, Horizontal Board-to-Board connector, 100 pos., Socket | 100 pos. |
------------------------------------------------------------------------------------------------
3、日本JAE連接器--JAE|日本航空電子AC01系列0.5毫米間距堆疊型板對板連接器 此產品銷售商：
3M電子產品網--代理銷售【日本JAE連接器--JAE|日本航空電子AC01系列0.5毫米間距堆疊型板對板連接器】以及第2項內容中表格清單內的所有(料號/型號)連接器產品；如果您想購買或了解我們可提供哪些連接器|線束|線纜產品解決方案，歡迎通過下面方式聯系我們.
①、3M電子產品網是由蘇州匯成元電子科技有限公司與昆山杰康富精密電子有限公司共同合資開發以及眾多連接器|線束|線纜生產企業協助建立的一個生產與銷售連接器|線束|線纜產品的銷售平臺。②、本公司提供《連接器產品》及《線束線纜產品》欄目?jī)?nèi)所有發布的 連接器|線束|線纜 產品，如有需要請聯系我們！③、如貴司有《產業制造商》與《產業資訊》欄目中發布的品牌/產品內的相關資源與產品，請及時與我們聯系，相互合作共贏！
